High EfficientRefrigeration Application
XECOM®️ XR/XF Series Scroll Compressors
Product Description
XECOM®️ XR/XF Series
Scroll Compressors
XR/XF Series Scroll Compressors have PDV intelligent discharging technology and dual discharge valve design, improving partial load energy efficiency with wider operating temperature range, together with Liquid Injection Technology or Vapor Injection Technology, refrigeration system design and engineering application become an easy job.
Product Features
01
High Pressure Release Valve
Internal high pressure releasing to improve reliability
02
Triple Dynamic Seal
Three floating flexible O shape seal design, isolating high, medium, and low pressure chamber, for long term excellent overall performance
03
Liquid Injection Valve (XFL Series)
Effectively reduce discharge gas temperature, enlarge operation range
04
Vapor Injection (XFV Series)
Directly inject low temperature and low pressure vapor into scroll medium pressure pocket, improve Sub Cooling and increase compression ratio, for wider operation range, larger capacity, and higher efficiency ratio
05
Dual Compliance Technology
Radial and axial compliance scroll technology, liquid and debris handling capability to improve reliability and durability
06
Sight Glass
Welding assembly near bottom of shell to monitor oil level, simple after service
07
Low Side Pressure Design
Suction gas motor cooling, higher durability
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
08
Sound Muffler
Reduce discharge gas pulsation, lower sound level
09
Dual Discharge Valve
Prevent high pressure gas returning to scroll, lower compressor shutdown noise and higher volumetric efficiency
10
Pre-Discharge Valve
Gas discharge prior to main port and dynamically adjust compression ratio, higher partial load energy efficiency
11
Symmetric Scroll Profile
Balanced scroll force and reduce gas leakage between scroll pockets, lower sound level and higher energy efficiency
12
Suction Screen
Filter debris, improve reliability
13
Internal Line Break Motor Protection
Motor dual protection of high temperature and overload current, better durability
14
High Efficient Motor
Optimized stator slot design to improve motor efficiency, higher energy efficiency
15
Dynamic Auto Balanced Oil Circulation
Dynamic centrifugal oil pump and reduce oil circulating rate, improve reliability
Product Details

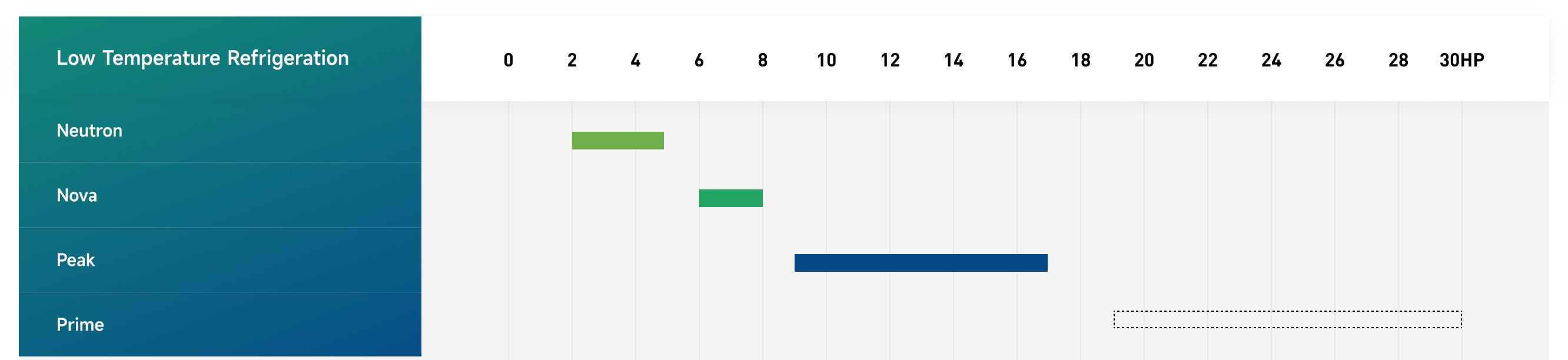

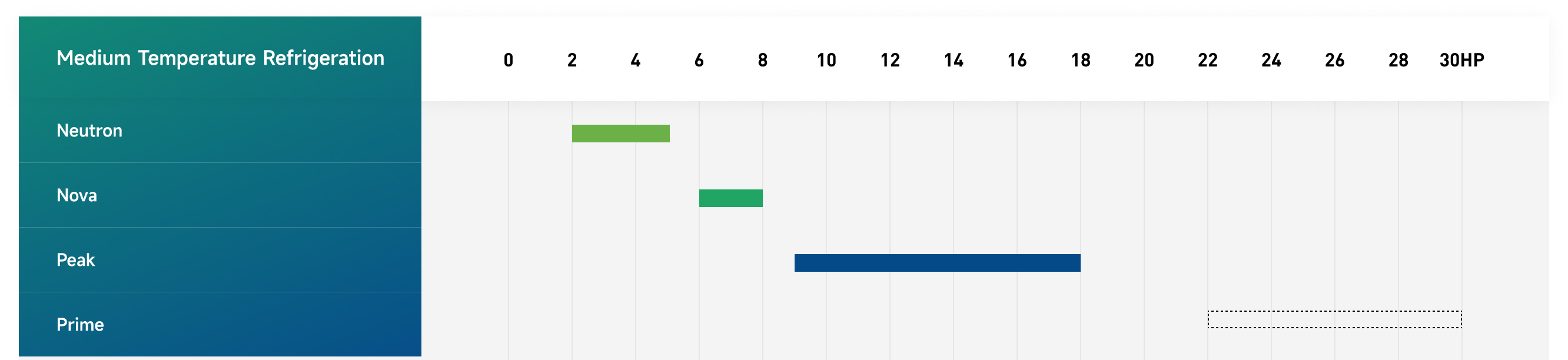

Product Range and Capacities
Product Catalogue
Looking for specific product model and technical specification, please download our latest product catalogue.
Download PDF
